Aluminum AE Decoupled Slipper Spooler Kit

Aluminum AE Decoupled Slipper Spooler Kit

Only works with AE B74 Decoupled Slipper. Secure Spooler Spur Gear Mount to Kimbrough Spur Gear (KIM145, KIM146, etc.) with 3 M3x5mm or M3x6mm Button Head Screws. Use a small amount of thread lock to secure the screws. Slide setup onto the Slipper Shaft

Do NOT over screws or setscrews. Firmly snug is plenty of force to hold units on. Overtightening any screws or setscrews will cause a tweak to the setup and it will not run true.

Spooler unit is compatible with AE Decoupled Slippers installed in TLR 22x-4 Buggies.

Spur Gear not included.
AE Decoupled Slipper not included.

Spooler Spur Gear Mount
Weight – 2.00 Grams (does not include weight of screws,washer,nut,or spur) mag 1.2g
Material – 7075 Aluminum
Coating – Blue Anodization

Spooler Collar
Weight – 0.70 Grams (does not include weight of screws,washer,nut,or spur) Mag: .5g
Material – 7075 Aluminum
Coating – Blue Anodization

Front Small Slipper Plate
Weight – 1.05 Grams (does not include weight of screws,washer,nut,or spur) mag .70g
Material – 7075 Aluminum
Coating – Hard Anodization

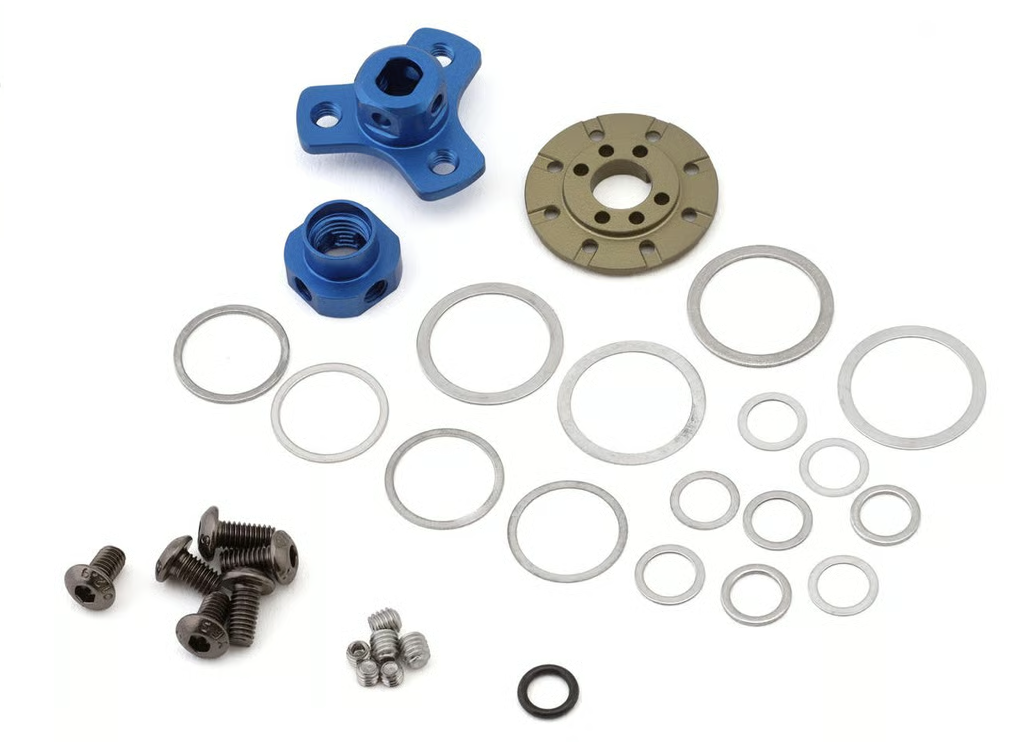

Includes:
Main Bag:
(1) Aluminum Spooler Spur Gear Mount
(1) Aluminum Spooler Collar
(1) Aluminum B74 Small Decoupled Slipper Plate
(3) Black Chrome Nickel Plated 12.9 M3x5mm Button Head Screws
(3) Black Chrome Nickel Plated 12.9 M3x6mm Button Head Screws
(3) M3x3mm Set Screws
(3) M2.5x2mm Set Screws
(1) Rubber O-Ring
(8) Assorted 5mmx7mm Steel Shim
(4) Assorted 10mmx12mm Steel Shim
(4) Assorted 12mmx15mm Steel Shim
